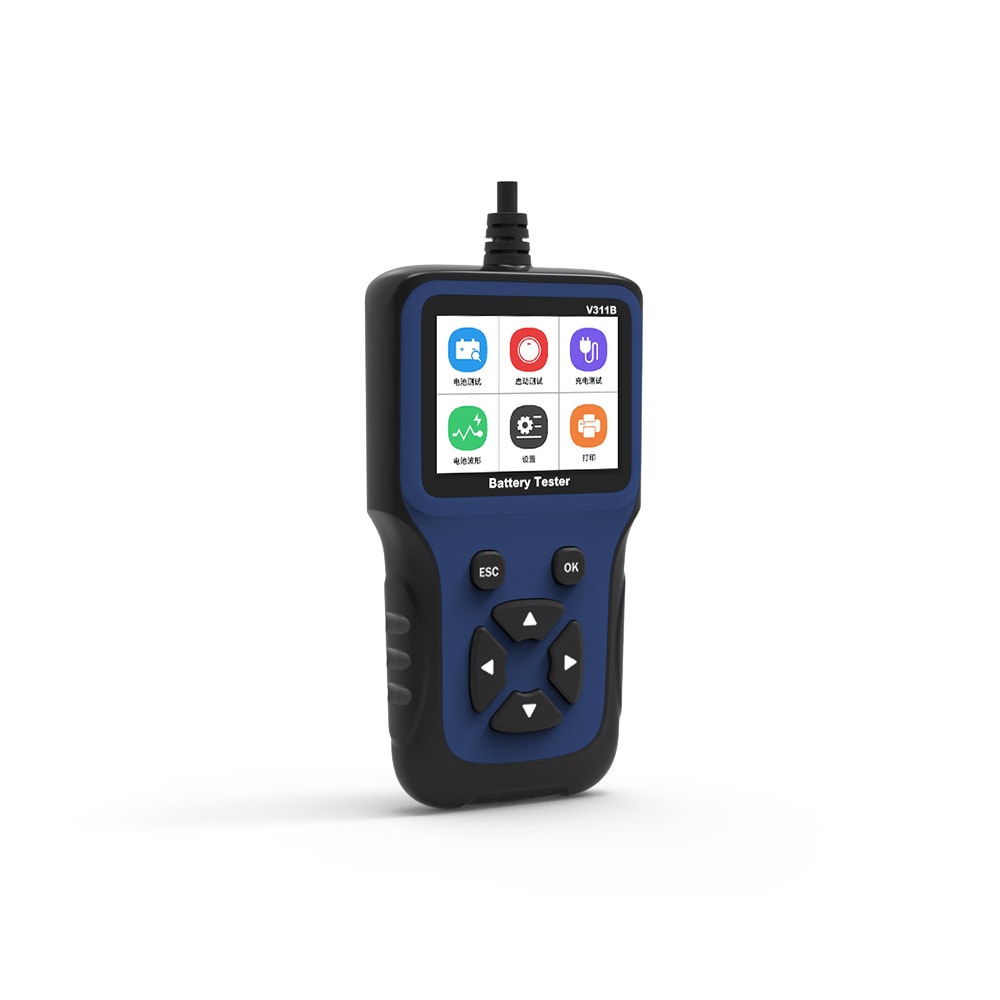

Battery Voltage Detection Automotive Diagnostic Device

Product Information:
Main control chip: APM32F103VCT6
Operating voltage: 9-18V
Operating temperature: -20~60℃
Storage temperature: -20~70℃

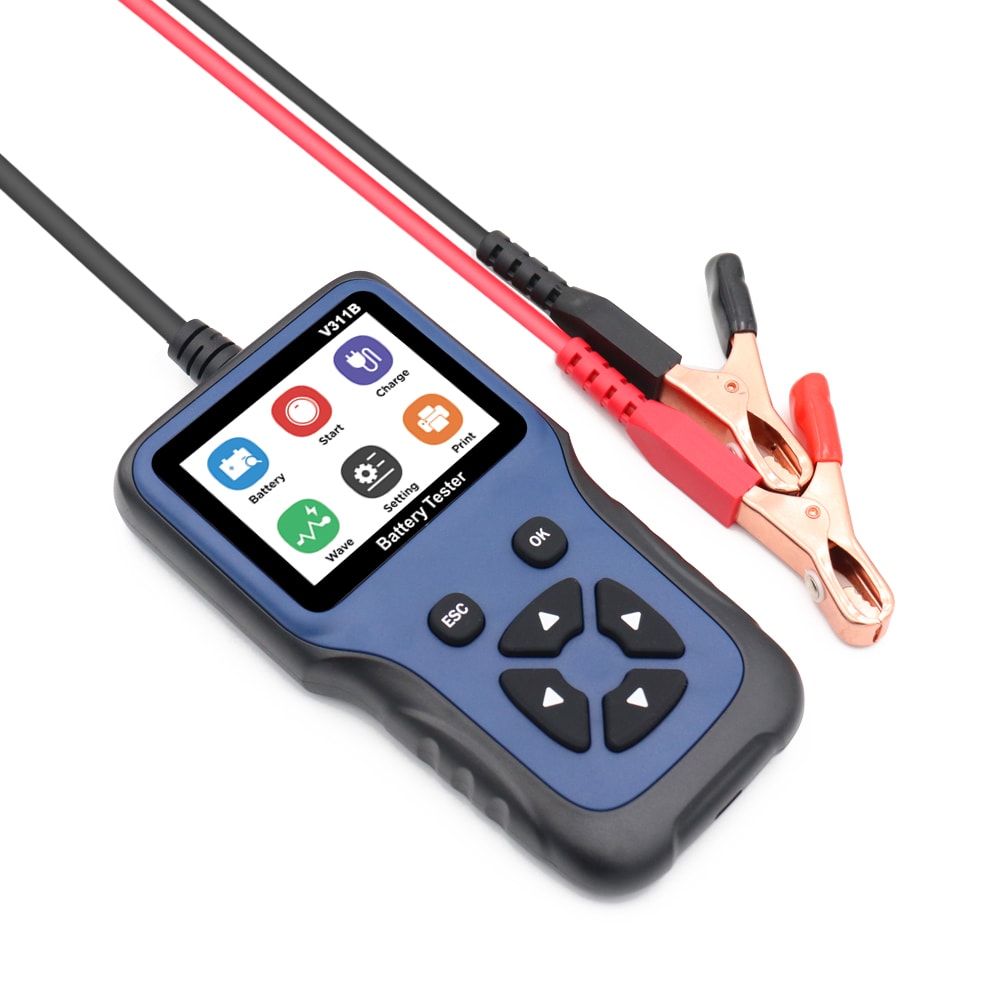

Connector type: A pair of reverse black and red alligator clips, cable length 1 m
Product size: 156*88*24mm
Package size: 200*130*43mm

Features:
1. Check the battery voltage
2. Test battery impedance
3. Residual power test
4. Battery life
5. Cold start current detection
6. Color screen 2.8 inches
7. Support 9 languages: English, Chinese, Portuguese, Italian, French, German, Spanish, Polish and Russian

Measuring range:
CCA:100-2000A.
BCI:100-2000A.
CA:100-2000A.
MCA:100-2000A.
JIS:26A17-24SH52.
DIN:100-1400A.
IEC:100-1400A.
EN:100-2000A.
SAE:100-2000A.
GB:10-250Ah.

Packing list:

Diagnostic apparatus x1pc
