INTRODUCTION
The IR extender can do IR signal extend by the CEC channel of the HDMI port. You can do control to the IR Signal source device by using the received IR (infrared) signal by the IR Receiver.
Features & Specification
lIt can do control to the IR Signal source device by using the received IR (infrared) signal by the IR Receiver.
lIR extend distance is up to 25m ( it depends on the quality and length of the HDMI cable)
lControl: To choose the CEC/IR extends function by manual (it needs to put the two IR Adaptor switch to IR status.
lMAX operation current:15ma
lWeight:35g Housing: plastic box
l Easy install & operation
l Power free

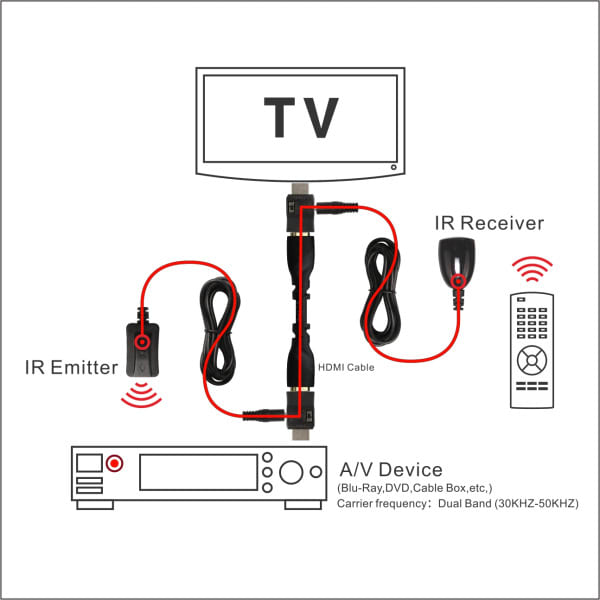

Operating and Connecting：
1、To use one HDMI Cable to connect the two IR Adptor HDMI input female port.
２、To connect one of the two IR adaptor Output port with the HD Source, the other IR adaptor Output port to connect with the Display.
３、 To connect one IR adaptor with the IR-RX port.
４、 To connect the other IR adaptor with the IR-TX port.
Note: Pls use the standard HDMI Cable.！！！
